Middlewares

Usage

Middlewares can be used in several ways:

• Entrypoint (ordered)
• Middleware Compose (ordered) - reusable middleware configuration YAML files under config/middlewares
• Docker labels (unordered)
• Route files (unordered)

For unordered middlewares, you have to set priority manually when order matters

services:
  app:
    ...
    labels:
      proxy.aliases: myapp
      proxy.myapp.middlewares.redirectHTTP.priority: 1
      proxy.myapp.middlewares.cidrWhiteList.priority: 2
      proxy.myapp.middlewares.cidrWhiteList.allow: 127.0.0.1, 10.0.0.0/16

Middleware name and properties are case-insensitive and accept snake_case, PascalCase or camelCase

redirectHTTP, redirect_http and RedirectHttp are equivalent.

Syntax

Middleware Compose and Entrypoint Middleware

# middleware compose / entrypoint middleware syntax
<name>:
  - use: {middleware}
    {option1}: {value1}
    {option2}: {value2}
    ...

# middleware compose
# config/middlewares/whitelist.yml
myWhitelist:
  - use: CloudflareRealIP
  - use: CIDRWhitelist
    allow:
      - 127.0.0.1
      - 223.0.0.0/8

# config/config.yml
entrypoint:
  middlewares:
    - use: CloudflareRealIP
    - use: CIDRWhitelist
      allow:
        - 127.0.0.1
        - 223.0.0.0/8

Docker Labels and Route Files

# docker labels
proxy.#1.middlewares.{middlewareName}.{optionName}: { value }
proxy.#1.middlewares.{middlewareName}.{optionName2}: { value2 }

# docker labels (yaml style)
proxy.#1.middlewares.{middlewareName}: |
  {optionName}: {value}
  {optionName2}: {value2}

# route file
myapp:
  middlewares:
    { middlewareName }:
      { optionName }: { value }
      { optionName2 }: { value2 }

Reusing Middleware Compose Objects

# docker compose
services:
  app:
    labels:
      proxy.#1.middlewares.myWhitelist@file:

# route file
myapp:
  middlewares:
    myWhitelist@file:

# entrypoint in config.yml
entrypoint:
  middlewares:
    - use: myWhitelist@file

Middleware Bypass Rules

Bypass middlewares with a list of rules. Matching any of them will bypass the middleware.

See Rules syntax

entrypoint:
  middlewares:
    - use: oidc
      bypass:
        - route immich # bypass for immich route
        - route public_service & path / # bypass for route "public_service" and root path "/"
        - remote 127.0.0.1 # bypass for localhost
        - remote 192.168.0.0/16 # bypass for 192.168.0.0/16 ip range
        - remote 10.0.0.0/8 # bypass for 10.0.0.0/8 ip range
        - remote 172.16.0.0/12 # bypass for 172.16.0.0/12 ip range
        - method HEAD # bypass for HEAD method
        - header Authorization "Bearer 1234567890" # bypass for auth header with specific token
        - query access_code "1234567890" # bypass for access_code query with specific value
        - cookie session "1234567890" # bypass for session cookie with specific value

Examples

Syntax Examples

# config.yml
entrypoint:
  middlewares:
    - use: cidr_whitelist
      allow:
        - 127.0.0.1
        - 10.0.0.0/16

# docker labels (yaml style)
proxy.#1.middlewares.cidr_whitelist.allow: |
  - 127.0.0.1
  - 10.0.0.0/16

# single line comma separated
proxy.#1.middlewares.cidr_whitelist.allow: 127.0.0.1, 10.0.0.0/16

# route file
openai:
  host: https://api.openai.com/
  middlewares:
    cidr_whitelist:
      allow:
        - 127.0.0.1
        - 10.0.0.0/16
    modify_request:
      set_headers:
        Host: api.openai.com
  homepage:
    show: false

Middleware with Bypass Rules

WARNING

Global OIDC is hard to be configured correctly.

# config.yml (global middlewares)
entrypoint:
  middlewares:
    - use: oidc
      bypass:
        - route pocket-id # bypass the IdP route
        - route immich & path /api/* # this allows immich route to bypass oidc (to use with its own oidc implementation)
        - route karakeep & path /api/v1/* # this allows karakeep mobile app (or any api requests) to bypass oidc
        # bypass local network
        - remote 127.0.0.1
        - remote 192.168.0.0/16
        - remote 10.0.0.0/8
        - remote 172.16.0.0/12
        - remote 100.64.0.0/10

# docker labels (route specific middlewares) (e.g. vaultwarden)
services:
  vw:
    ...
    labels:
      # this allows bitwarden apps (api requests) to bypass oidc
      proxy.#1.middlewares.oidc.bypass: path /identity/* | path /api/* | path /icons/*
  karakeep:
    ...
    labels:
      proxy.#1.middlewares.oidc.bypass: path /api/v1/*

Available middlewares

OIDC

Name: oidc

OIDC uses the settings from .env file, with configurable overrides.

Option	Description	Default	Required
allowed_users	Override allowed users	GODOXY_OIDC_ALLOWED_USERS	No
allowed_groups	Override allowed groups	GODOXY_OIDC_ALLOWED_GROUPS	No

hCaptcha

Name: hcaptcha

Protects against bots by solving a hCaptcha challenge.

Option	Description	Default	Required
site_key	hCaptcha site key		Yes
secret_key	hCaptcha secret key		Yes
session_expiry	Session expiry time	24h	No

Explanation

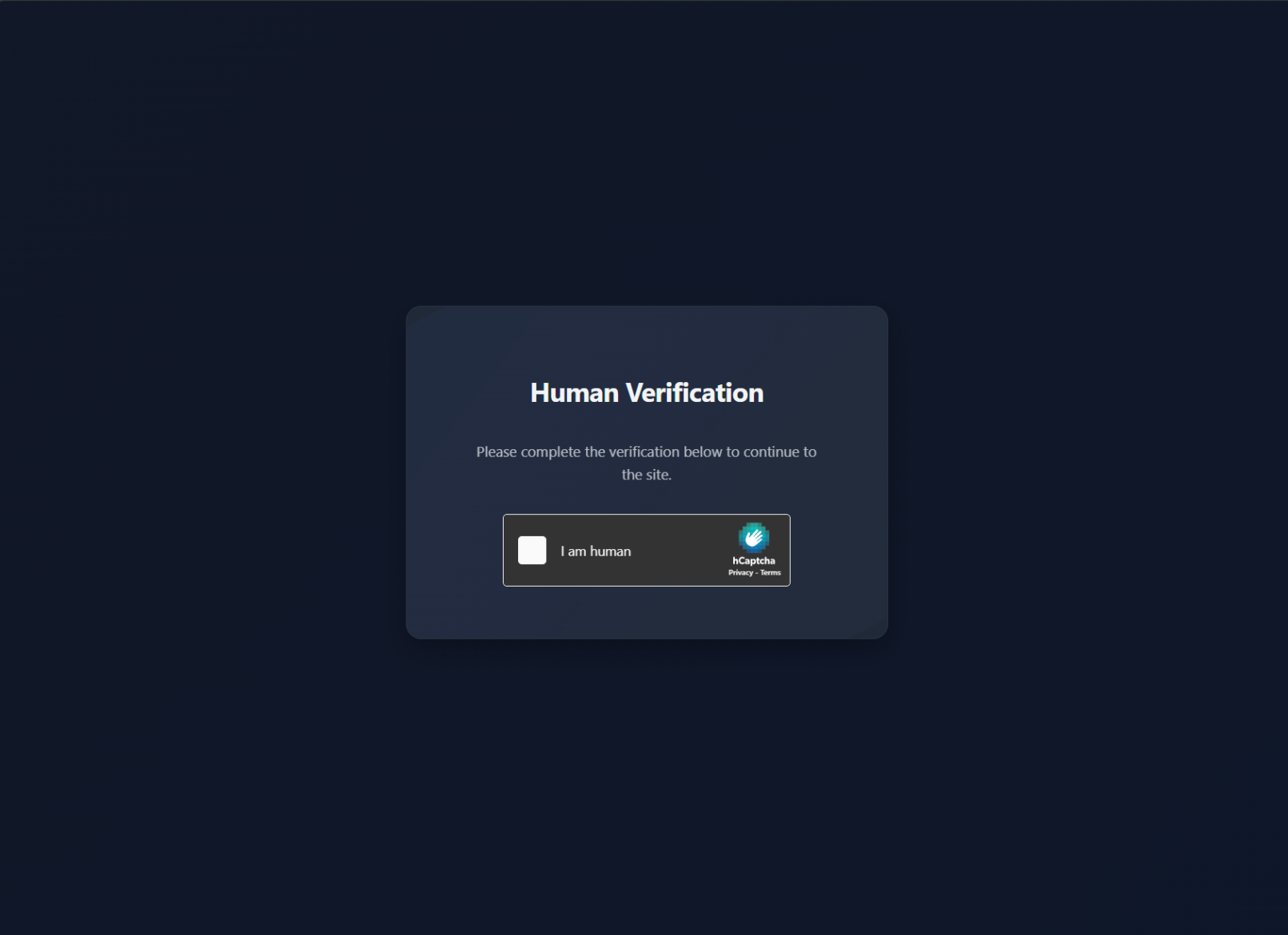

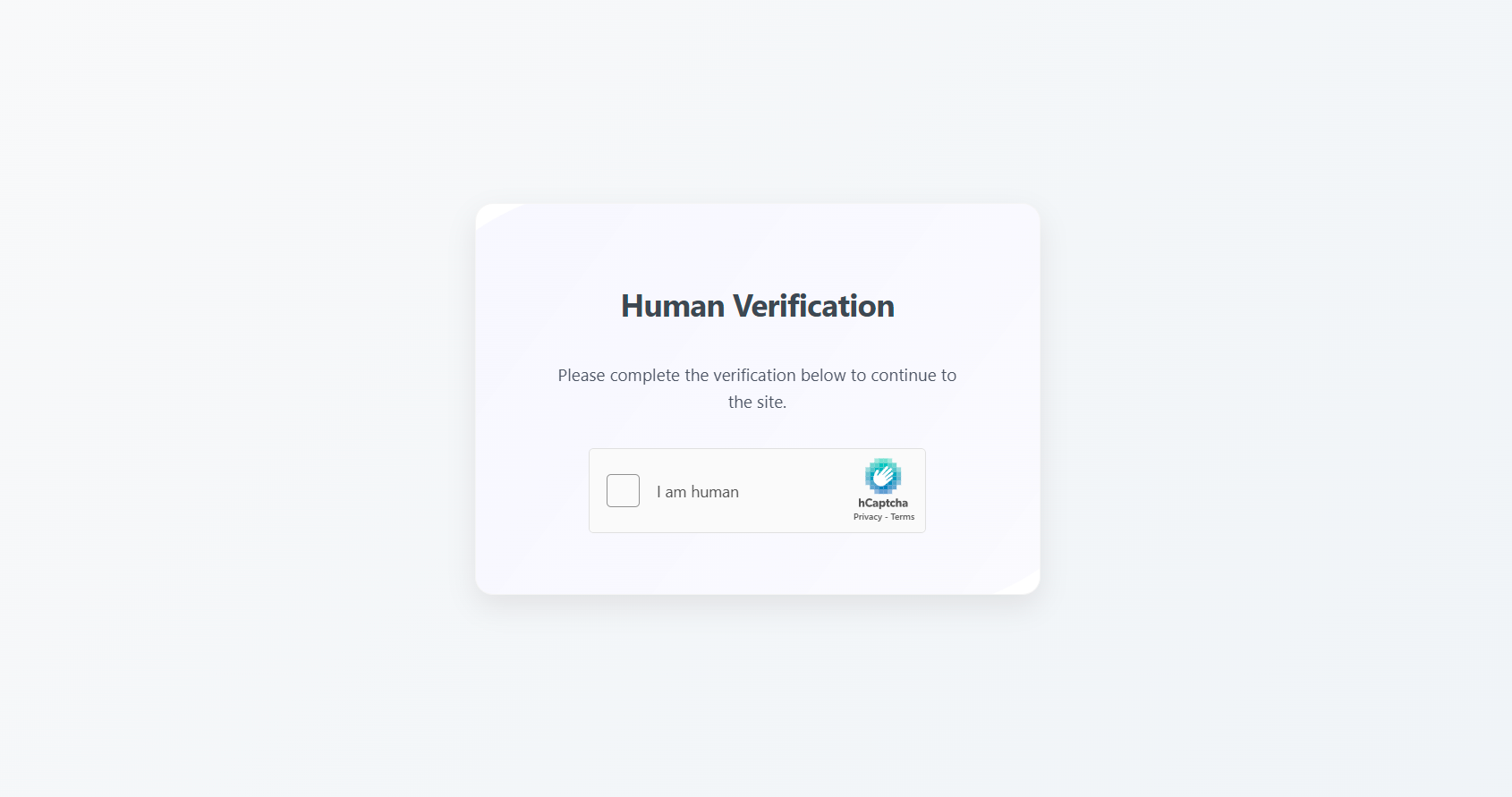

• User will see a captcha landing page before accessing the protected route.
• Once the captcha is solved, the user will be redirected to the real page.
• Users will need to solve the captcha again after each session_expiry period.

Screenshots

Redirect http

Name: redirect_http

Redirect http requests to https

Custom error pages

See Custom Error Pages

Real IP

Name: real_ip

NOTE

This middleware is used for resolving the correct client IP from real_ip.header (e.g. X-Real-IP)

This affects:

• $remote_addr and $remote_host
• IP in the access log
• CIDRWhitelist Middleware

Recommended to use on entrypoint

Option	Description	Default	Required
header	Real IP header	X-Real-IP	No
from	List of trusted CIDRs		Yes
recursive	Recursive mode	true	No

Recursive mode	Description
true	Choose the first IP that does not match the from list
false	Choose the last IP that does not match the from list

Example:

• X-Forwarded-For: 1.2.3.4, 192.168.0.123, 10.0.0.123
• from: 192.168.0.0/16

Recursive mode	Result
true	1.2.3.4
false	10.0.0.123

# entrypoint
entrypoint:
  middlewares:
    - use: real_ip
      header: X-Real-IP
      from:
        - 127.0.0.1
        - 192.168.0.0/16
        - 10.0.0.0/8
      recursive: true

nginx equivalent:

location / {
  set_real_ip_from 127.0.0.1;
  set_real_ip_from 192.168.0.0/16;
  set_real_ip_from 10.0.0.0/8;

  real_ip_header    X-Real-IP;
  real_ip_recursive on;
}

Cloudflare Real IP

Name: cloudflare_real_ip

NOTE

This middleware requires no additional configuration.

It is a preset of Real IP for Cloudflare Proxy/Tunnels. It will skip all local IPs.

Preset Values

Option	Description
header	CF-Connecting-IP
from	List of Cloudflare IPs (updated hourly from official sources)
recursive	true

Trusted IPs:

• https://www.cloudflare.com/ips-v4
• https://www.cloudflare.com/ips-v6
• all local IPs

CIDR Whitelist

Name: cidr_whitelist

See Request Level Access Control

Rate Limiter

Name: rate_limit

Option	Description	Default	Required
average	Average requests per period		Yes
burst	Maximum number of requests allowed in a period		Yes
periods	Time period in format number[unit]	1s	No

Modify request or response

Names:

• modify_request or request
• modify_response or response

Option	Description	Default	Required
set_headers	Set headers		No
add_headers	Add headers		No
hide_headers	Hide headers		No
add_prefix	Add prefix to path		No

Supported variables

NOTE

To use variables, add $ ($$ for docker compose) before the variable name.

Single $ in docker compose is treated as environment variables.

Variable	Description
req_method	request http method
req_scheme	request URL scheme (http/https)
req_host	request host without port
req_port	request port
req_addr	request host with port (if present)
req_path	request URL path
req_query	raw query string
req_url	full request URL
req_uri	request URI (encoded path?query)
req_content_type	request Content Type header
req_content_length	length of request body (if present)
remote_addr	client's remote address (may changed by middlewares like RealIP and CloudflareRealIP)
remote_host	client's remote IP, parsed from remote_addr
remote_port	client's remote port, parsed from remote_addr (may be empty)
resp_content_type	response Content Type header
resp_content_length	length of the response body
status_code	response status code
upstream_name	upstream server name (alias)
upstream_scheme	upstream server scheme
upstream_host	upstream server host
upstream_port	upstream server port
upstream_addr	upstream server address with port (if present)
upstream_url	full upstream server URL
header(name)	get request header by name
resp_header(name)	get response header by name
arg(name)	get URL query parameter by name

Set headers

# docker labels
proxy.myapp.middlewares.request.set_headers: |
  X-Custom-Header1: value1, value2
  X-Real-IP: $$remote_host

# route file
myapp:
  middlewares:
    request:
      set_headers:
        X-Custom-Header1: value1, value2
        X-Real-IP: $remote_host

Add headers

# docker labels
proxy.myapp.middlewares.request.add_headers: |
  X-Custom-Header1: value1, value2
  X-Custom-Header2: value3

# route file
myapp:
  middlewares:
    request:
      add_headers:
        X-Custom-Header1: value1, value2
        X-Custom-Header2: value3

Hide headers

# docker labels
proxy.myapp.middlewares.request.hide_headers: |
  X-Custom-Header1
  X-Custom-Header2

# route file
myapp:
  middlewares:
    request:
      hide_headers:
        - X-Custom-Header1
        - X-Custom-Header2

nginx equivalents

location / {
  add_header X-Custom-Header1 value1, value2;
  more_set_headers "X-Custom-Header1: value1, value2";
  more_set_headers "X-Custom-Header2: value3";
  more_clear_headers "X-Custom-Header1";
  more_clear_headers "X-Custom-Header2";
}

X-Forwarded Headers

Hide X-Forwarded Headers

Name: hide_x_forwarded

Remove Forwarded and X-Forwarded-* headers before the request is sent to the upstream service.

# docker labels
proxy.myapp.middlewares.hide_x_forwarded:

# route file
myapp:
  middlewares:
    hide_x_forwarded:

Set X-Forwarded Headers

Name: set_x_forwarded

Replace existing X-Forwarded-* headers with headers provided by GoProxy.

# docker labels
proxy.myapp.middlewares.set_x_forwarded:

# route file
myapp:
  middlewares:
    set_x_forwarded:
